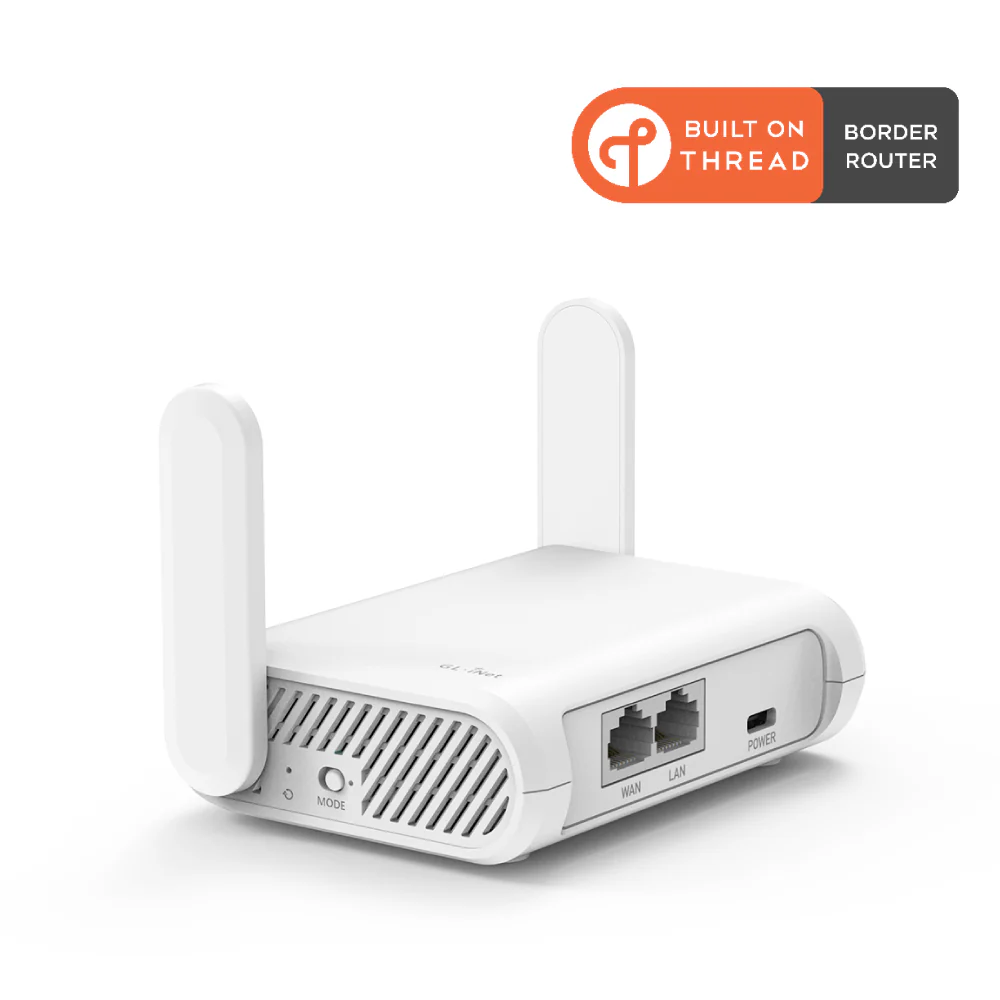

MEET GL-S200
Dual-Protocol Thread Border Router
Low Power Thread Mesh & BLE to MQTT IoT Network
GL-S200 is a Thread Border Router designed for users to host and manage low power and reliable
IoT mesh networks.
The device supports both Thread and BLE protocols, and it comes with an optional pre-configured
Thread development
board for a simplified integration process to IoT devices.
BLE
Supports BLE to MQTT
Optional pre-configured Thread development
board
User-friendly topology management
interface
Learn More
Next
Integrate Thread into IoT Devices
The GL-S200 Gateway offers a convenient way to integrate the Thread protocol into IoT devices. It
offers
an optional pre-configured Thread Development Board that enables data transfer with the gateway’s
Thread
protocol via UART, SPI, and I2C integration with IoT end devices. Additionally, an optional testing
module
is also available, it includes a variety of sensors and control interfaces, such as push & turn
dial, RGB
light, PIR, Humidity, Temperature, and atmospheric pressure.
Thread Topology Interface
The GL-S200 Admin Panel provides a user-friendly topology interface for users to maintain an
organized
and manageable overview of their complex IoT networks.

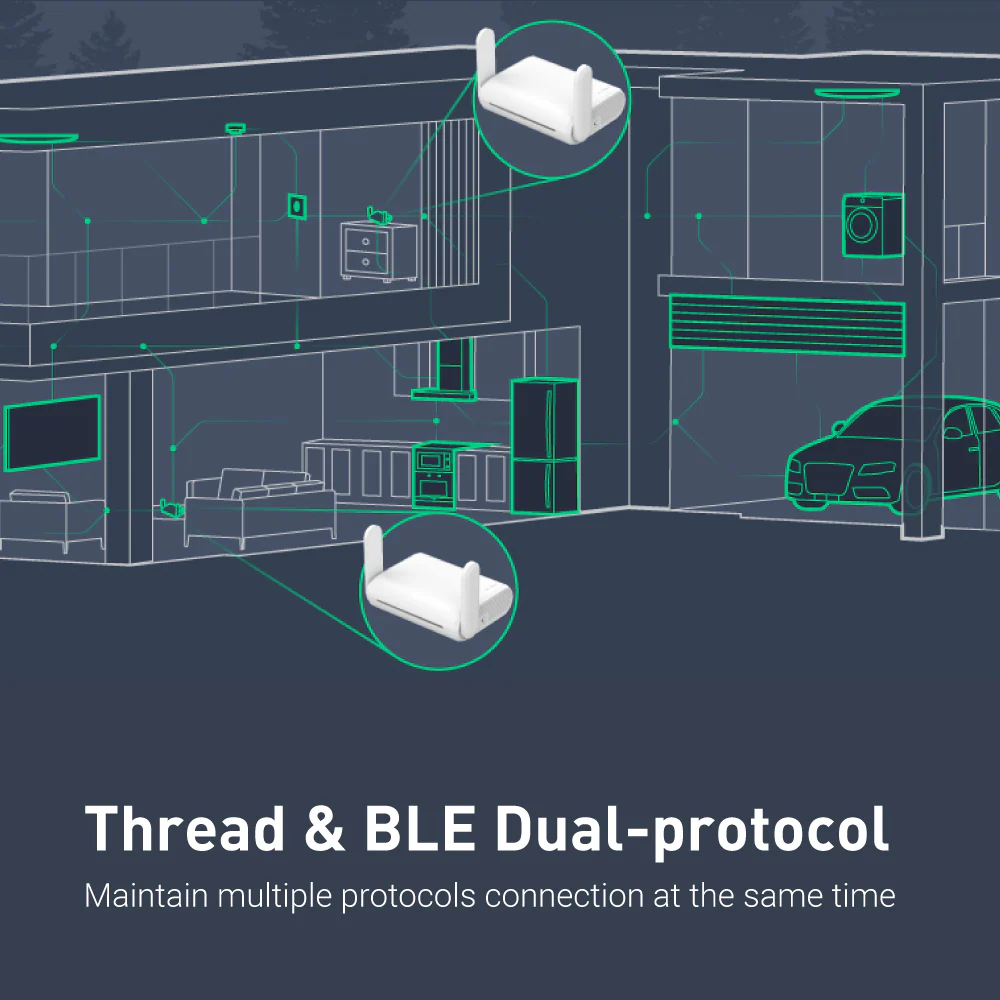

Thread & BLE Dual-protocol
The GL-S200 Thread Border Router is capable of running both Thread and BLE protocols simultaneously.
Thread protocol is optimal under high density networks while avoiding network congestion, and BLE is
capable of connecting to devices at greater distances, effectively providing users with the
flexibility
to connect to a wide range of devices.
- Self-healing
- Multiple IoT Protocols
Minimal Latency Pathfinding Coordination
GL-S200 supports both device-to-device and device-to-cloud connectivity. Its Thread
protocol allows the deployment of multiple
Thread Border Routers and seeks the most efficient path using the fewest nodes for
connecting to the Internet. It uses multiple
border routers simultaneously to reduce the latency of large IoT networks. IoT
devices within the network will automatically seek
the router with the lowest latency for connecting to external networks.
Secure Your Smart Home and IoT Devices
GL-S200 supports Thread and BLE protocols, it is designed to maintain multiple
protocols connection at the same time, and the
device is compatible with most smart home IoT devices. All Thread networks supports
Advanced Encryption Standard (AES) encryption
and phone authentication to provide multi-layers of security for the connected
devices.
The Future-proof Smart Home Gateway for Home Automation
Built-in Security
GL-S200 supports AES encryption and phone authentication to build a secure access control network for
smart homes
and smart buildings.
Low Energy Footprint
Built on the power-efficient IEEE 802.15.4 MAC/PHY to connect an ecosystem of low power products to
each other,
ideal for lighting control, energy management, smart home appliances control etc.
Open IPv6-based Protocol
IPv6 features auto-configuration and multicasting which allows one-to-many communication between
devices.
It runs on end-to-end encryption to offer powerful network security.
Runs on OpenWrt 21.02 (Kernel version 5.4)
GL-S200 runs on GL.iNet’s proprietary firmware based on OpenWrt, presenting a user-friendly
interface to set
up Thread networks and offers an extensive degree of customization, with users being able to choose
from
OpenWrt’s 5000+ open-source ready-made plug-ins.
DNS over TLS & DNS over HTTPS
GL-S200 supports both DNS over TLS and DNS over HTTPS to enhance network privacy and security,
providing
users with the flexibility to choose between encryption depending on the network type. DNS over
TLS uses
encryption to secure DNS communications, while DNS over HTTPS uses the HTTPS protocol for an
additional
layer of security.
OpenVPN/WireGuard
GL-S200 is pre-installed with OpenVPN and WireGuard® supporting 30+ VPN services. It
automatically
encrypts all network traffic within the connected network, including smart home devices that are
not capable of running VPN encryption independently.
Remote Access and Management
GL-S200 comes with GL.iNet’s GoodCloud remote device management platform, providing users with
remote access
to the device admin panel and data usage monitoring. It also enables batch device management,
firmware updates,
and configuration. The GoodCloud platform also provides device analytics and notifications for
status updates,
enabling users to manage devices efficiently.
OpenWrt Pre-installed
Type-CPower Input
Thread
Real-time Scanning
BLE 5.0
| Weight | 0.00107 kg |
|---|
